Modular Perimeter
Flood Barrier

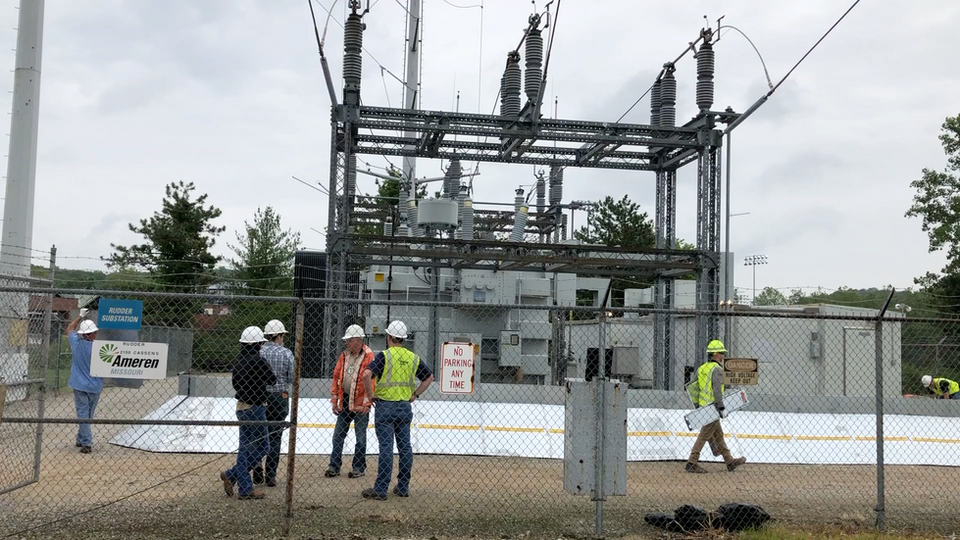

A high-strength, modular barrier system designed to accommodate various obstacles and terrains.

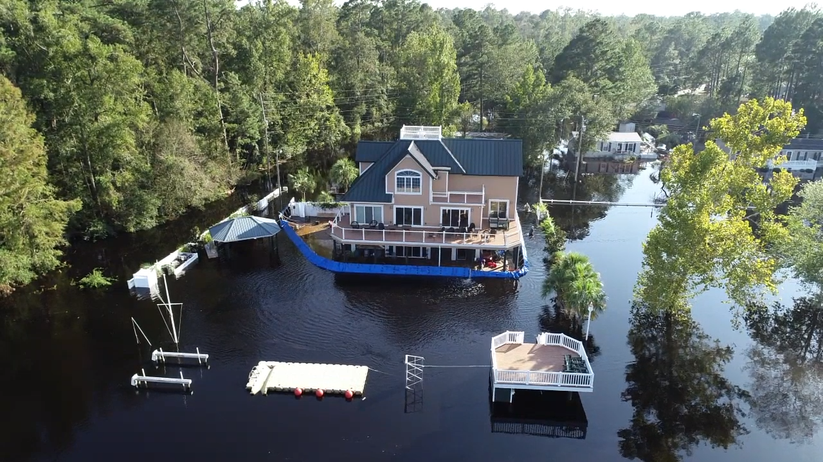

Geodesign Barriers
With reinforced high strength steel trusses, diamond plated aluminum panels or sheets and a waterproof liner the Geodesign flood barrier is incredibly durable, withstanding hurricane type winds and flooding. This engineered flood barrier provides full height protection that allows for modular setup, compact storage, and quick deployment. Geodesign flood barriers have been a trusted flood solution for 25 years with over 500,000 linear feet of barriers sold in 24 countries.
 |
|---|
 |
 |
 |
 |
 |
MADE IN SWEDEN
Easy to Deploy
Modular with
no fill material
Adaptable
Design conforms
to all surfaces
Robust Material
High strength steel and corrosion resistant aluminum
Easily Store & Transport
Collapsible components with stackable crates
Liner Options
High and Low Density Polyethylene
FM Approved
Scientific research & testing ensures products conform to highest standards of safety & property loss prevention
Two Designs, Same Standard of Protection
Geodesign flood barrier comes in two different models, Heavy Duty Flood Barrier and Industrial Flood Barrier. Both models are made of reinforced steel, utilize high and low density polyethylene liner and are FM Approved.
Heavy Duty Flood Barrier
-
Maximum flexibility
-
Extendable
-
Flood protection up to 8 ft
-
FM Approved
Industrial Flood Barrier
-
Lightweight
-
Optimized for storage
-
Flood protection up to 4 ft
-
FM Approved
Heavy Duty
Flood Barrier
The Heavy Duty product family consists of five different
models, based on the same sturdy design but with different dam heights. All models share the same link bars, have the same section widths and are easily combined to tailor to the needs of a site or situation.
C48
Protection
height
4 ft
Section width:
4 ft
Setup Time:
50 min
(328 feet/
6 people)
Footprint:
14 ft
(with max
polyliner)
Weight per section:
147 lbs
Storage vol. weight:
198 cu ft, 2.8 ton
(One set,
33 sections)
C60
Protection
height
5 ft
Section width:
4 ft
Setup Time:
55 min
(328 feet/
6 people)
Footprint:
14 ft
(with max
polyliner)
Weight per section:
173 lbs
Storage vol. weight:
215 cu ft, 3.2 ton
(One set,
33 sections)
C70
Protection
height
6 ft
Section width:
4 ft
Setup Time:
1 h 25 min
(328 feet/
6 people)
Footprint:
22 ft
(with max
polyliner)
Weight per section:
223 lbs
Storage vol. weight:
244 cu ft, 4.1 ton
(One set,
33 sections)
C84
Protection
height
7 ft
Section width:
4 ft
Setup Time:
1 h 45 min
(328 feet/
6 people)
Footprint:
22 ft
(with max
polyliner)
Weight per section:
258 lbs
Storage vol. weight:
367 cu ft, 4.7 ton
(One set,
33 sections)
C96
Protection
height
8 ft
Section width:
4 ft
Setup Time:
2h 10 min
(328 feet/
6 people)
Footprint:
30 ft
(with max
polyliner)
Weight per section:
310 lbs
Storage vol. weight:
470 cu ft, 5.7 ton
(One set,
33 sections)
Easy Setup
The Heavy Duty Flood Barrier is engineered to withstand extreme loads under the most challenging conditions. Despite its robust characteristics, the installation process is quick, easy, and requires no tools or machinery.

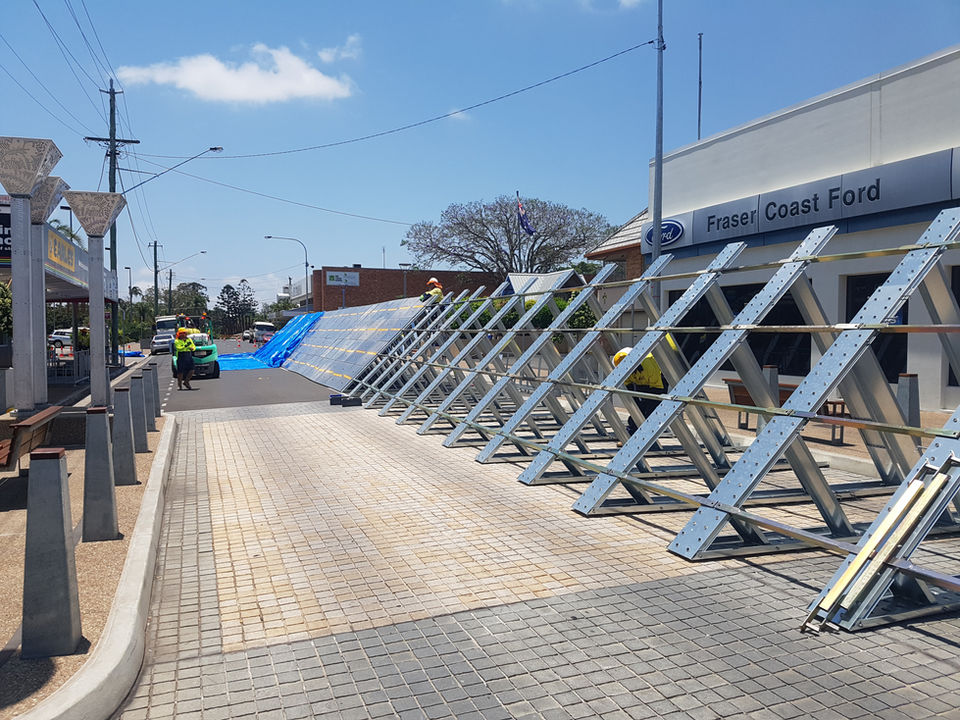

PLACE, UNFOLD & LOCK STEEL SUPPORTS
CONNECT STEEL SUPPORTS USING LINK BARS
MOUNT ALUMINUM PANEL
LINE WITH MEMBRANE
ANCHORED WITH WATER
Place the frames 4ft apart to form your intended barrier line. Unfold the a-frame and secure the upright position with the
snap lock
Attach the Link Bars to the frames by sliding them into the
self-locking slots.
Mount the Aluminum Panels by sliding the key hole cut outs over the protruding strips on the Link Bars.
Roll out the poly membrane along the barrier and come onto the liner on the face of the barrier. Add chains as ballast to manage windy conditions.
Allow water to come onto the liner and the face of the barrier and let it anchor itself using the forces exerted by the
flood water.
Versatility
The engineered design of the Heavy Duty Flood Barriers allows it to be used on rough uneven terrain, around obstacles. Protruding steel collars underneath the bottom bean establish a grip and increase friction between the barrier and ground surface. Adjustable link bars allow the frames to be placed at different elevations. Trapezoid elements are used to patch around obstacles and connect between elevations.
Simple Storage
The logistical advantages of the Heavy Duty Flood Barriers saves money every day
in storage and in every deployment through fewer transports to and from the
flooded site. All barriers come flat packed in stackable steel crates with forklift
pockets and side gates for easier packing and unpacking on site. The single items
are light enough to be carried by two workers and each crate can be pulled with a
manual forklift. One set contains 33 sections of fully deployed Heavy Duty Flood
Barrier (132 linear feet) and the parts are packed in three crates.
COMBI CRATE
Link bars
Panel clips
Poly Membrane
Chains
SUPPORT CRATE
C- Metal supports
ALU CRATE
Aluminum panel
Industrial
Flood Barrier
The Industrial product family consists of four different
models, based on the same sturdy design but with different dam heights. All models have the same section widths.
P40
Protection
height:
40 in
Section width:
4 ft
Setup Time:
50 min
(300 ft/
6 people)
Footprint:
10 ft
(With max
polyliner)
Weight per section:
59 lbs
Storage vol. weight:
90 cubic ft
(One set,
40 sections)
P32
Protection
height:
32 in
Section width:
4 ft
Setup Time:
50 min
(300 ft/
6 people)
Footprint:
10 ft
(With max
polyliner)
Weight per section:
49 lbs
Storage vol. weight:
70 cubic ft
(One set,
40 sections)
P24
Protection
height:
24 in
Section width:
4 ft
Setup Time:
35 min
(300 ft/
6 people)
Footprint:
6 ft
(With max
polyliner)
Weight per section:
37 lbs
Storage vol. weight:
53 cubic ft
(One set,
40 sections)
P48
Protection
height:
48 in
Section width:
4 ft
Setup Time:
1 h 10 min
(300 ft/
6 people)
Footprint:
13 ft
(With max
polyliner)
Weight per section:
73 lbs
Storage vol. weight:
100 cubic ft
(One set,
40 sections)
Easy Setup
The Industrial Flood Barrier has been designed and engineered to enable a fast installation without the need for tools, heavy equipment or a large workforce. This innovative steel barrier has become a large-scale favorite with government entities for its great logistical advantages and ingenious simplicity.
PLACE, UNFOLD & LOCK STEEL SUPPORTS
Place the frames 3 ft 3 in apart to form your intended barrier line. Unfold the a-frame and secure the upright position with the
snap lock.
MOUNT STEEL PANEL
Hang the panels between the frames by sliding the cutout over the protruding mount knobs on the supports and overlapping the neighboring panels.
LINE WITH MEMBRANE
Poll out the poly membrane along the barrier and fizate it with panel clips at the top. Add chains as ballast to manage windy conditions.
ANCHORED WITH WATER
Allow water to come onto the liner and the face of the barrier and let it anchor itself using the forces exerted by the
flood water.
Simple Storage
The Industrial Flood Barrier is delivered, transported and stored in a special crate
designed to fit all components needed to install 164 linear feet of a complete
barrier. The crate is divided into separate compartments and both short sides have
detachable gates that ease and speed up loading and unloading. A fully loaded
crate weighs up to 3053 pounds and can be moved with a pallet jack. The outer
dimensions vary between the models and all crates are stackable three high
